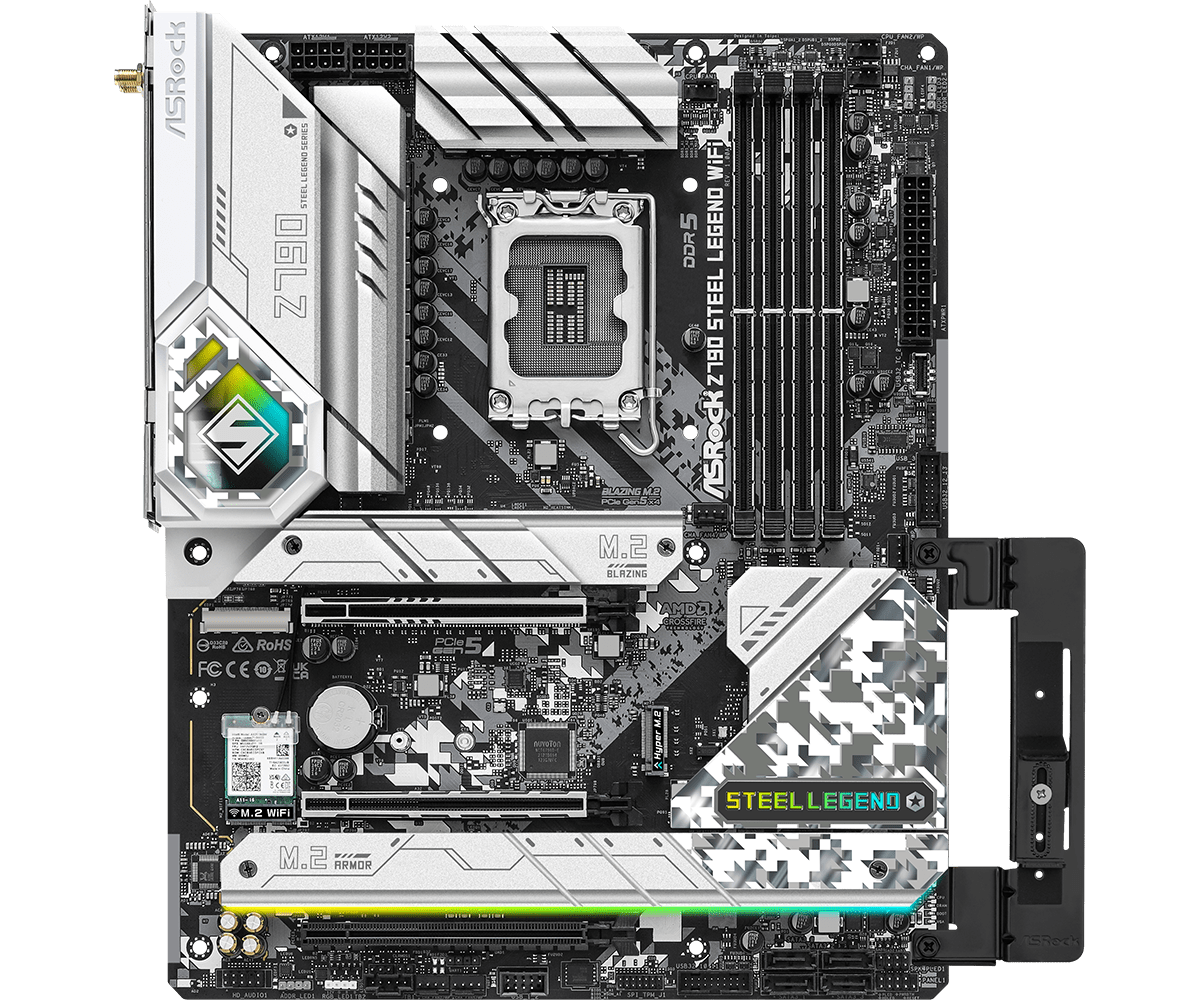

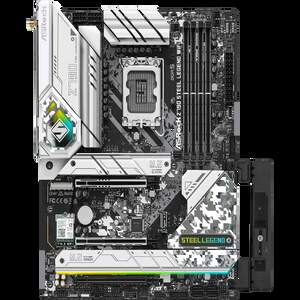

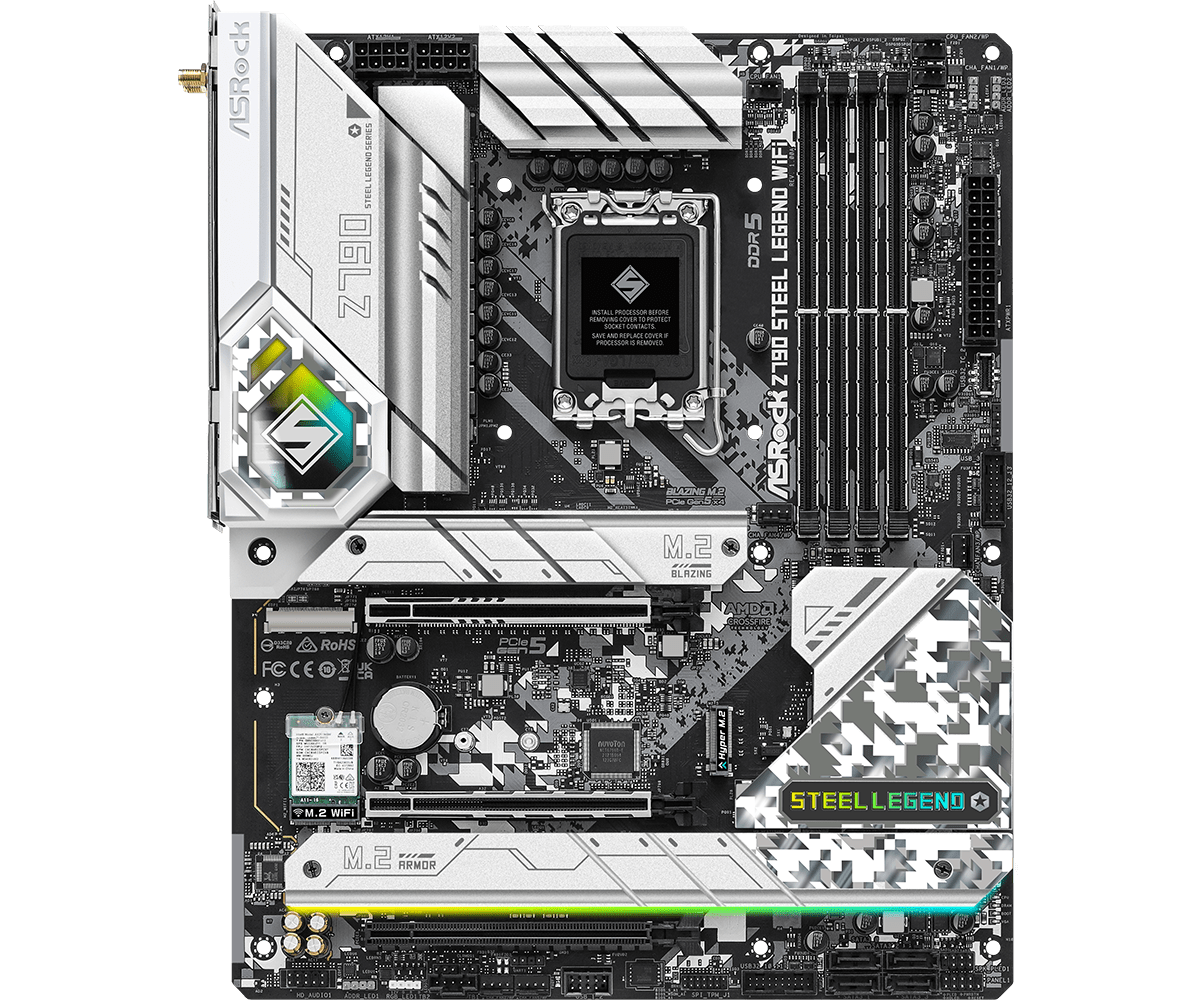

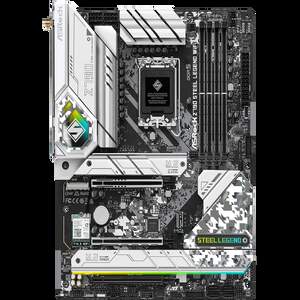

Asrock Z790 Steel Legend Wi-Fi

Описание

Серия: Steel Legend

Процесор: Intel 1700

Чипсет: Intel Z790

BIOS: 256Mb AMI UEFI Legal BIOS with GUI support

Памет: DDR5

Брой слотове: 4 DIMM Slots, Max. capacity of system memory: 128GB

Аудио: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

Безжична мрежа: 802.11ax Wi-Fi 6E Module, Supports Bluetooth + High speed class II, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports MU-MIMO

Конектори: SPI TPM Header, eDP Signal Connector, Power LED and Speaker Header, 24 pin ATX Power Connector, 8 pin 12V Power Connectors, Front Panel Audio Connector, Thunderbolt AIC Connector (5-pin), 2 x USB 2.0 Headers, 2 x USB 3.2 Gen1 Headers, Front Panel Type C

Слотове: CPU: PCIe 5.0 x16 Slot (PCIE1), Chipset: PCIe 4.0 x16 Slot (PCIE2), PCIe 3.0 x16 Slot (PCIE3)

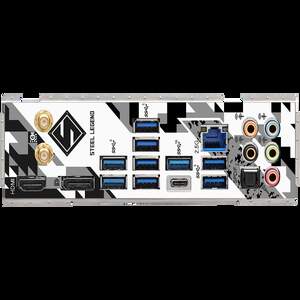

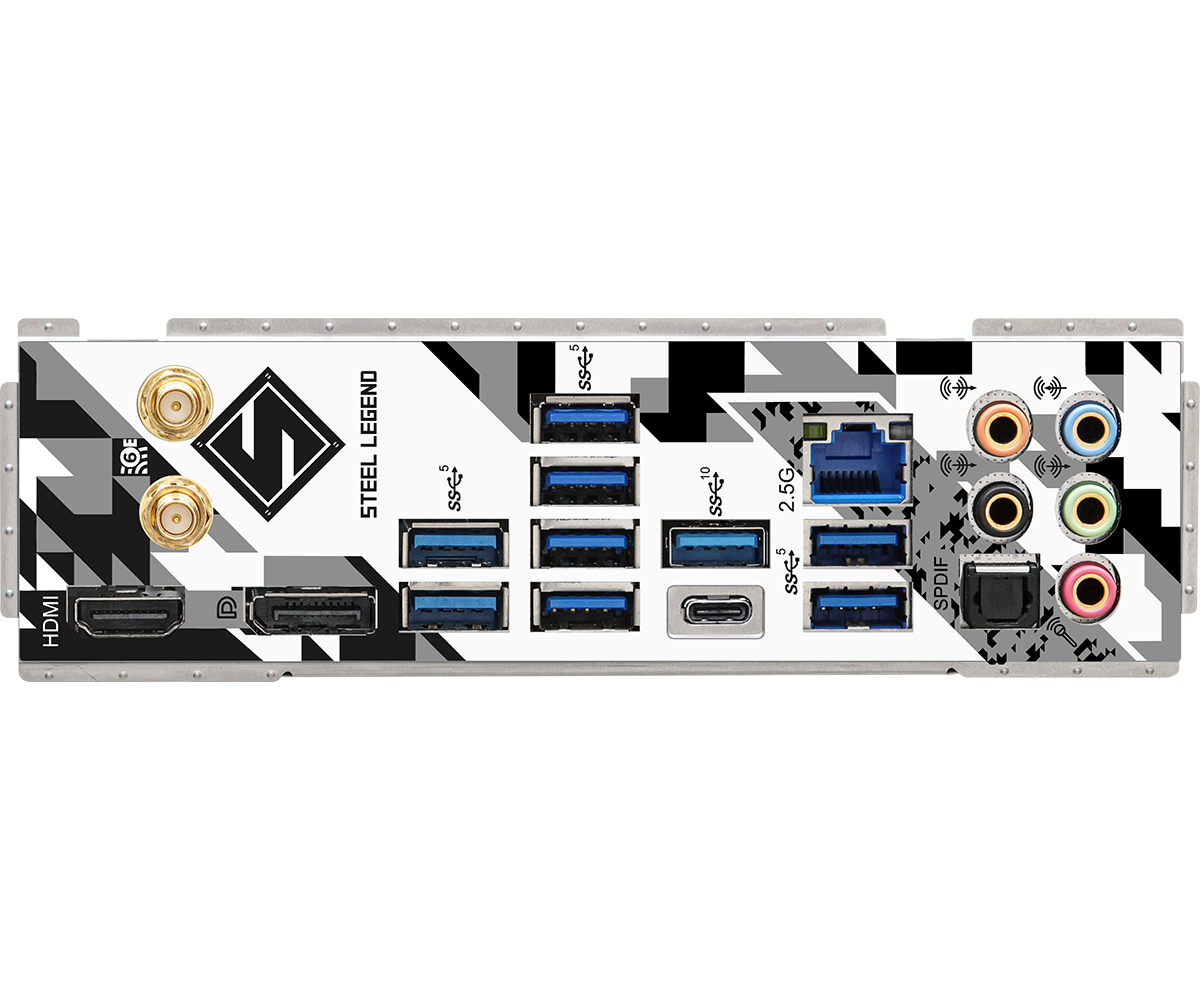

Интерфейс: 2 x Antenna Ports, HDMI Port, DisplayPort 1.4, Optical SPDIF Out Port, USB 3.2 Gen2 Type-A Port, USB 3.2 Gen2 Type-C Port, 8 x USB 3.2 Gen1 Ports, RJ-45 LAN Port, HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Софтуер: ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC

Операционна система: Microsoft Windows 10 64-bit / 11 64-bit

Форм-фактор: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Специални функции: Superb Productivity, Rock-Solid Durability, EZ Update

Гаранция - 36 месеца
